824-370 Series

824-370 Series

The 824-370 Series Dual Stage Filters combine the high efficiency performance advantages of our unique Centrifugal Separation method, an extended surface, sub-micron Coalescing Element, together with one of GWs' dependable automatic drains. In combination the end result is that heavy bulk liquids are removed by centrifugal motion. Oil varnish and water aerosols .03 micron and larger are coalesced. Abrasive particles above .3 microns are retained. Accumulated liquid contaminates are automatically expelled by the trouble free operation of the GW automatic drain. Without these contaminants to contend with, your auxiliary equipment (i.e. sanding, horn, bell, miscellaneous air valves and safety related brake equipment) will operate more reliably. In addition, contamination in the form of water, solids and oil varnish, if not removed properly, will lead to unscheduled maintenance, down time and unnecessary added costs. Coalescer Kits for several older 824 centrifugal filters are available for upgrade. GW is also prepared to upgrade your filters using our remanufacturing services if you wish.

Technical Specifications

Illustration may not depict actual product specifications.

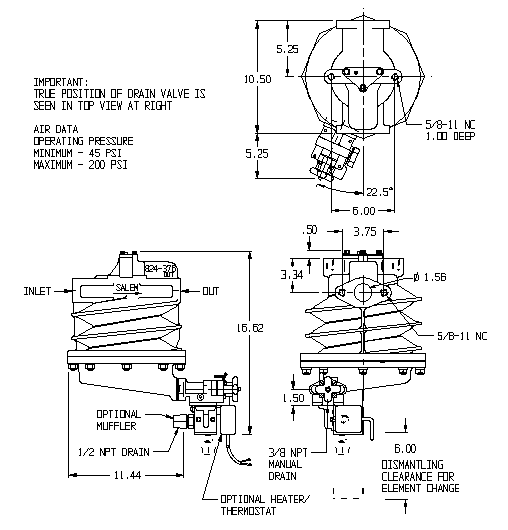

824-370 Series technical drawing
