Normally open and closed 816 Series Solenoid Valves are available to control various pneumatic functions including compressor control, dynamic brake, interlock, over speed, bell ringer, water circulation, etc. Epoxy impregnated encapsulated "Class F continuous duty" coils are standard with a variety of DC and AC input voltages that are located in a coil yoke to facilitate the installation and removal of the electrical connections in a cabinet or indoor environment. Faston tab (quick disconnect) and/or a terminal block connection with or without suppression devices are offered. GW solenoid valves are designed with pipe brackets to permit easy maintenance as required. As a result, no air connections need to be disconnected. This reduces out-of-service time for your equipment and saves money. Our unique 863-001 Series Duplex Solenoid Valve is designed for one inlet connection and two outlets for dual operation.

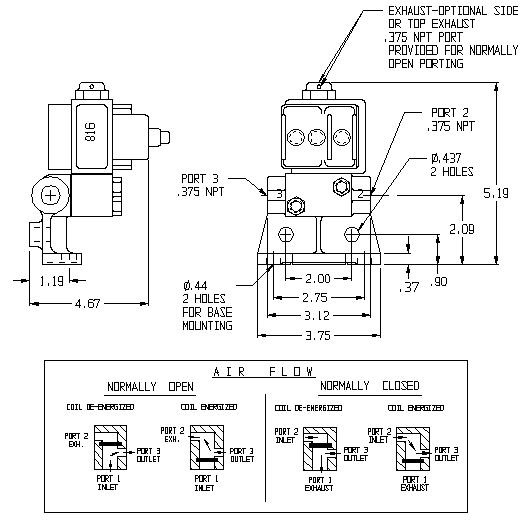

Illustration may not depict actual product specifications.
